MULTIMETER DIGITAL

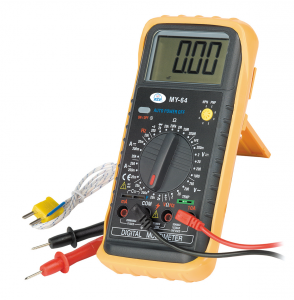

ATP Manual Ranging Digital Multimeter. Rugged 3 1/2 digit multimeter has a dual slope A-D converter. It uses C-MOS technology for auto-zeroing, polarity selection and over-range indication. It is ideal for use by electricains, electronic engineers, general industry and laboratories. **NOTE 10A RANGE IS UNFUSED**. Impact resistant ABS plastic case with a protective rubber holster. 40mm LCD display with large digits and function indicators. Manual ranging via 30-position positive click action rotary switch. Auto polarity indication on DC ranges. Fast blow fuse for overload protection. Auto power off. 220Vrms overload protection with fast blow fuse. Low battery indicator. Supplied with rubber holster, 2 test leads, K-Type thermocouple wire and battery. Technical Specifications: Range: 2V, 20V, 200V, 750V (Voltage AC) 200mV, 2V, 20V, 200V, 1000V (Voltage DC. Resolution: 1mV, 10mV, 100mV, 1V (Voltage AC) 100uV, 1mV, 10mV, 100mV, 1V (Voltage DC. Accuracy: +/-1% +/-3 digits (Voltage AC). +/-0.5% +/-3 digits (Voltage DC). Current DC & AC: Range: DC. 20uA, 200uA, 20A. AC: 20uA, 200uA, 20A. Resolution: 10nA, 100nA, 1uA, 10uA, 100uA, 1mA, 10mA. Accuracy: +/-0.8% +2 digits DC +/-1% +3digits AC. Resistance: Range: 200 Ohms, 2K Ohms, 20K Ohms, 2M Ohms, 20M Ohms, 200M Ohms. resolution: DC 1uA, 10nA, 100nA, 100mA. AC 10nA, 100nA, 10mA. Acuracy: +/-0.8% +/-2 digits. Capacitance: Range: 2nF, 20nF, 200nF, 2uF, 20uF. Resolution: 0.001nF, 0.01nF, 0.1nF, 1nF, 10nF. Accuracy: +/-2.5%+5 digits. Frequancy: Range: 20KHz x 10 KHz, +/-2% +5 digits. Diode Test: Max open circuit 2.8V. Continuity: Audible beeper if resistance is less than 100 O. Temperature (K-Type Thermocouple) : Range: -50 degrees to 1000 degrees C. Resolution: 1 degrees C. Accuracy: +/-5% of reading +/-4 deg C (-40 deg C - 0 deg C). +/-0.8% of reading +/-4 deg C (0 deg -400 deg C0. +/-1.5% of reading +/-15 deg C (400 deg C - 1000 eg C0. Model number DM-64. **Traceable Calibration Certificate, UKAS Calibration Certificate and 9V PP3 Alkaline battery available on request - contact our sales Department for further information**.

INFORMATION

Code	Size	Pack Size
WMA04501		Each

PRICES

Quantity	Price	Buy

1+	£35.50
