Signal Generator

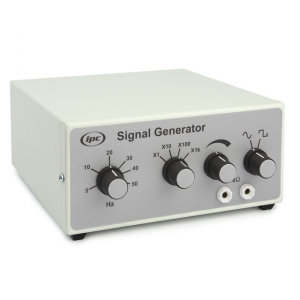

IPC Signal Generator. Sine and square wave generator. Frequency range 5Hz to 50kHz in four switched ranges plus a fine control. Accuracy typically +/-10%. The output amplitude is continuously variable from zero to maximum 8V peak to peak with maximum output power 1W into 8 ohms. The output is taken from two 4mm sockets mounted on the front panel. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. Electrical supply: 220-240VAC, 50-60Hz. Dimensions: 179 x 190 x 85mm overall. Mass: 1.65kg.

INFORMATION

Code	Size	Pack Size
WSIG0001		Each

PRICES

Quantity	Price	Buy

1+	£135.50
