EHT POWER SUPPLY

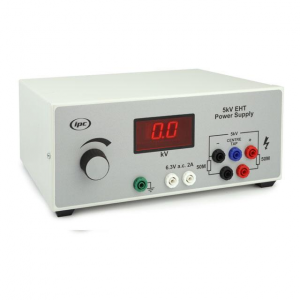

IPC 5kv EHT Power Supply. Continuously variable output from 100V to 5kvDC. Output voltage is indicated on a 14mm 2 digit LED display. The EHT circuits are fully floating so that for certain applications the positive or negative terminal may be safely connected to earth. The EHT outputs are taken from 4mm shrouded sockets and provide 100V to 5kvDC at up to a maximum of 3mA or current to 60uA. A centre tapped socket is provided to give +/-2.5kv DC output. An additional pair of 4mm shrouded sockets at 19mm spacing are provided giving 6.3VAC at 2A for filament supplies. There is also a separate earthing terminal. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. Supplied with instructions and detachable mains lead. Electrical supply 220-240VAC, 50-60HZ. Dimensions 255 x 220 x 110mm overall. Mass 3.6kg. DC Output Voltage Range 100V to 5kcDC. Maximum DC Output Current 3mA. Maximum DC Limited Current 60uA. AC output Voltage 6.3VAC. Maximum AC Current 2A.

INFORMATION

CodeSizePack Size
WEL61001Each

PRICES

QuantityPriceBuy
1+£357.80
