Geiger Muller Tube and Holder

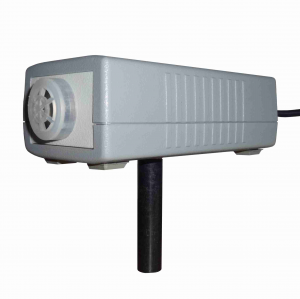

IPC Geiger Muller Tube and Holder (IPC-6200-R). This item has been designed to work directly with the IPC Timer scaler and Frequency Meter (IPC-3342-T -details available on request), but can also be used with any other suitable Scaler unit. The GM tube contained within this stand-alone holder is the industry standard type ZP1481. As recommended in the Cleapss document GL:138. The ZP1481 has a large area detection window making it suitable for all practical demonstrations and investigations as well as having an efficiency level suitable for detecting alpha, beta, and gamma radiation, it is also robust and has a long life. The holder containing the GM tube not only provides both protection and a choice of connections to the Tube, but also the option to attach the holder to a retort stand using the fixing rod. Also contained within the holder is a high ohmic value (4M7) series resistor required by most counter and ratemeter (Scaler) units. If required the protection grill covering the detection window can be removed should you want to detect low levels of contamination. The standard connection provided by the GM Tube and Holder is via a flying lead fitted with a TNC plug connector suitable for the IPC Timer Scaler and Frequency Meter, however if required the holder can be fitted with a panel mounted BNC jack connector, for any other type of connection the manufacturer would need to be contacted.

INFORMATION

Code	Size	Pack Size
WGE10004		Each

PRICES

Quantity	Price	Buy

1+	£461.08
