Light Meter LED

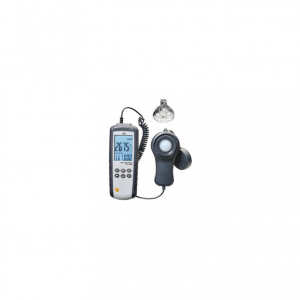

LED Light Meter
A professional LED light meter specifically calibrated relative spectral sensitivity wavelength of 550nm to the JIS standard C 1609-1993 measuring corrected LED day white light spectrum. With a user selectable light source it can also measure normal light sources. It has a wide measuring range up to 400,000 Lux, large LCD display and user-selectable measuring units. It is ideal for environmental monitoring, health & safety checks and industrial applications.
Measures both lux and footcandles (FC), user selectable.
Range selection of 5 lux ranges and 4 FC ranges.
Manual or auto ranging.
Over range indication.
Silicon photo diode sensor and LED spectral response filter.
Fully cosine corrected.
User selectable light source.
Zero adjustment.
Sensor connected to the instrument by a fixed 1.5 metre (approx.) coiled cable.
Measuring rate of 1.5 times per second.
50mm LCD display with backlight, 40 segment bargraph and function indicators.
Data hold freezes measured values.
Min, max or average memory.
Auto power off after 5 minutes of no activity (can be user disabled).
Impact-resistant ABS case.
Supplied with protective lens cap, soft carry pouch and battery.
Technical Specification:
Range 40/400/4,000/40,000/400,000 Lux
Resolution 0.1/1/10/100 Lux
0.01/0.1/1/10 FC
Accuracy +/-3% of reading +/- 10 digits
Power 4 x 1.5V AAA alkaline battery (code OP10602)
Dimensions 162 x 63 x 28mm
Weight 250g
