POWERBASE PSU

Description

EL06511/POWERBASE

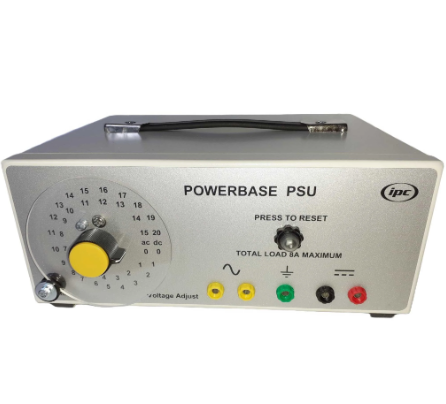

This new addition to the IPC power supply range, the IPC POWERBASE PSU is a heavy-duty power supply designed to provide both continuously variable 0-15VAC and 0-20VDC (capacitor smoothed) outputs up to 8 Amps (IPC-0120-P). Both outputs are protected by a single re-settable thermal cut-out and can be used simultaneously up to a combined output current of 8 Amps. The output voltage connections use the industry standard colour coded 4mm output sockets. Both the AC and DC output voltage levels are indicated by means of a calibrated scale.

This power supply also includes our unique maximum output voltage limiting system (VLS), this enables the teacher to set a maximum voltage level for the AC or DC output. As with all IPC power supplies an illuminated on/off switch is mounted on the rear panel, adjacent to a fused IEC mains inlet and supplied with a 2.0m mains cable. The power supply itself is fitted with a carrying handle and enclosed in a robust metal case with a durable powder coated finish.
