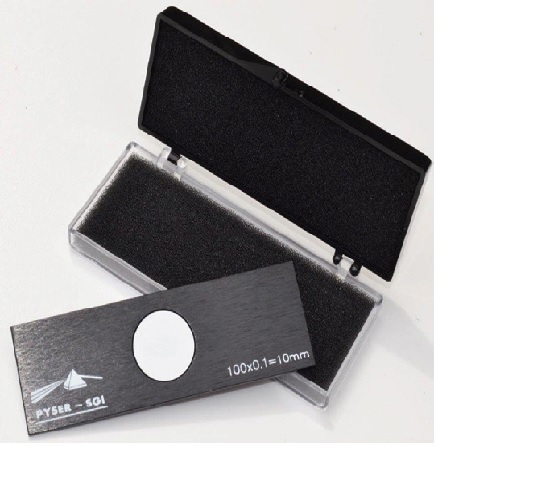

MICROMETER S1 STAGE, 10MM/0.1MM

Description

MI10001

MICROMETER S1 STAGE

Stage Micrometer with 10mm scale subdivided into 100 divisions of 0.1mm (100µm).
For Transmitted Light.

Line Thickness
0.005mm +/-0.001mm

Glass Type and Thickness
B270 1mm thick

Scale Length Tolerance
+/-0.002mm

Mount
Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)

Divisional Marker Lengths
2.0mm, 1.6mm, 0.8mm

Orientation
Correct on top surface
