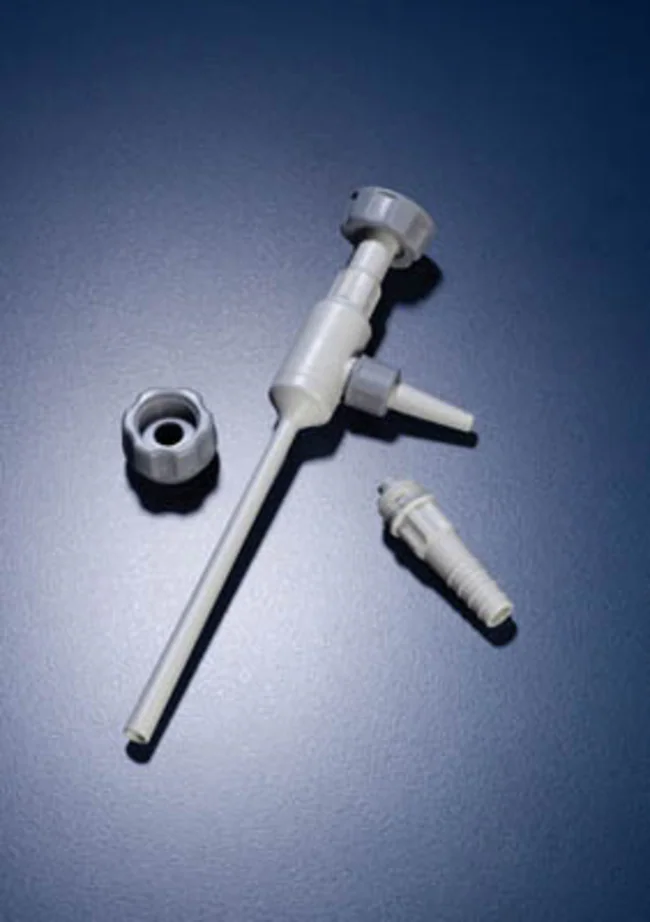

Description
Suitable for most laboratory water pressures
- Suitable for most laboratory water pressures
- Integrated non-return valve increases safety
- Detachable vacuum connection – accepts 6mm to 9mm bore tubing
- Supplied with water inlet hose nipple andR 3/4inch threaded tap connectors, with R 1/2 inch reduction adapter
- Water inlet hose nipple accepts 10mm to 12mm bore tubing
- Very low water consumption: 190L/hr at 3.5bar water supply pressure
- A pressure of 16mbar (water temperature of 12°C) is achievable with a water supply pressure from 3 to 6bar
- High suction capacity with a flow rate of approx. 400L/hr of air (at 1atm and water supply pressure of 3.5bar at 12°C)
| Includes |
Water inlet hose nipple and R 3/4 in. threaded tap connectors, with R 1/2 in. reduction adapter |
| Material |
Polypropylene |
| Flow Rate |
400 L/hr. |
| For Use With |
Threaded faucets and a tubing connector |
| Overall Height (Metric) |
8.5 cm |
| Overall Length (Metric) |
10.1 cm |
| Overall Width (Metric) |
8.9 cm |
| Pump Type |
Water Jet Pump |
| Applications |
Used for most laboratory water pressures |
| Maximum Pressure |
6 bar |
