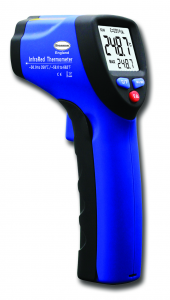

Brannan Infrared Thermometer. hand held supplied with 3 point Calibration Certificate. Built-in laser pointer. Over range indication. Large backlit LCD. Date hold and power function. Packed in individual box with protective pouch. Product Specifications: IR Temperature Range: -50 to 350 degrees C (-58 to 662 degree F). Optical resolution: (D:S):13:1. Emissivity: Foxed at 0.95. Response Time: <500ms. Response Wavelength: 8 to 14um. Accuracy: +/1 degrees C between -50 &0 degrees C +/2 degrees C over 0 degrees C. resolution: 0.1 degrees C/degrees F. Calibration Points: 30, 100 & 350 degrees C. Operating Conditions: 0 to 50 degrees C <95%RH(non-condensing). Storage Conditions:-20 to 70 degrees C >80%RH. Diode Laser: output>1mW, Wavelength 630 to 670, Class II. Battery: 1 x 9V (included). CE & RoHS/WEEE: Compliant. Product Dimensions: packaged 180x111x62mm, unpackaged 155.5x98.8x27.5mm. LCD Dimensions: 26.5x25.6mm. Product Gross Weight: packaged 273g. Note: Field Of View The meter's field of view, or distance spot (D:S) indicates the distance required from the target spot. For example, where the field of view is 13:1, the thermometer should be 13cm from the target area. The diameter of the target must be at least 1cm.
